Features:

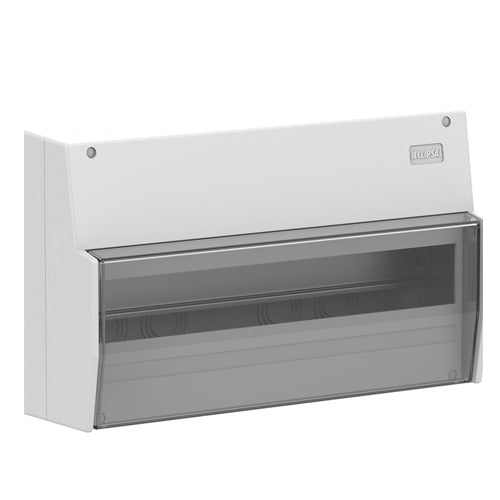

• • MAX9 switchboard enclosure is surface mounted.
  • The rated current is 100A.
  • This switchboard is composed of 1 row of 17 modules of 18mm (17 modules total).
  • It can accommodate all types of modular Clipsal devices. It has a tinted door lid
  • The provided equipment is an earthing bar, neutral bar, circuit identification label and blanking plate.
  • It is dedicated to the residential market.
  • The Ue rated operational voltage is 230VAC or 415VAC.
  • The Ui rated insulation voltage is 500V.
  • Removable DIN rail helps organise the cables in position before mounting the devices
  • Ample Earth and Neutral terminals to suit typical configurations and comply with MEN type system
  • Multiple cable entry/exit knock-outs
  • Extra wiring space with 135 mm Space between the DIN rails and sufficient space under the DIN rail
  • The degree of protection is IP30 in an enclosure.
  • This switchboard complies with AS/NZS 61439-3 and supports compliance to AS/NZS 3000 standards.
  • The switchboard colour is white electric (RAL9003)
  • Width: 341mm
  • Height: 210mm
  • Depth: 113mm
