• MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
• With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD – it picks up the active feed from the main switch and distributes both active & neutral across all types of Clipsal  RCBOs and AFDDs

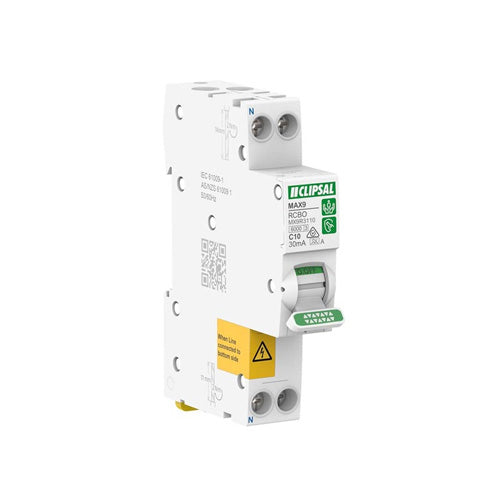

• MAX9 RCBO 1 Pole 10A

Features and benefits:

• Top and bottom line and load compatible for ease of installation.
• Short circuit breaking capacity of 6kA.
• Rated at 240V, 30mA, type A, C-Curve.
• One module width – ideal for retrofit installations where space is limited.
• The two-pole safety feature allows the switching of both Active and Neutral contacts.
• Trip free locking device (lockable ‘ON’ or ‘OFF’ position).
• Compatible with Clipsal’s 4LD Lock Dog.
• AS/NZS 61009 compliance.

Applications:

• Ideal for retrofit installations where pole space is a problem.
• Small width allows a greater number of RCBOs to be installed in one enclosure.

Specifications

• The operating frequency is 50Hz or 60Hz.
• The earth leakage protection class is type A with a sensitivity of 30mA.
• The earth-leakage protection time delay is instantaneous.
• The Icn rated short circuit breaking capacity is up to 6000A at 240VAC.
• It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles.
• This product protects against short circuits, cable overload, electrical shock by indirect contact and fire hazards.
• It brings safe, reliable solutions for commercial and industrial applications with high breaking capacity.
• It has an RCM quality label.
• The Ue rated operational voltage is 240VAC.
• The Ui rated insulation voltage is 440VAC. It has a Uimp rated impulse withstand voltage of 4kV.
• It can be mounted on a DIN rail for modular installation.
• The width in 9mm pitches is 2.
• The dimensions are (W) 18mm x (H) 93mm x (D) 73mm.
• The product colour is white (RAL9003).
• The product weight is 136g.
• According to IEC 60529 standard, the degree of protection is IP20.
• The pollution degree is 2.
• The operating temperature is from -25øC to +70øC.
• The storage temperature is from -40øC to +85øC.
• This product complies with IEC 61009-2-2 and EN/IEC 61009-1 standards.
