- Designed to support high speed data network applications such as 10-Gigabit Ethernet (10GBASE-T)
- 4 Pairs and a drain wire
- Minimise alien crosstalk
- Excellent signal isolation and EMI protection
Features
- Designed to support high speed data network applications such as 10-Gigabit Ethernet (10GBASE-T)
- 4 Pairs and a drain wire
- Minimise alien crosstalk
- Excellent signal isolation and EMI protection
Specifications
| Conductor | Material | Bare Copper |
| Size | 23AWG 1/0.56/0.58±0.015mm |
|
| Insulation | Material | HD-PE |
| Thickness | MIN at any point: 0.24/ 0.28mm MAX AVG: 0.26/0.3mm |
|
| Diameter | 1.08±0.01mm; 1.15±0.01mm | |
| Colour Code | Blue/ White-Blue | |
| Orange/White-Green | ||
| Green/ White-Green | ||
| Brown/ White-Brown | ||
| Elongation | MIN 300% | |
| Tensile strength | MIN 1.682 Kg/mm2 | |
| Stranding | Myar | 0.025x23mm |
| Al Foil | 0.065x23mm | |
| Drain Wire | 1/0.40±0.02mm | |
| Cross Slot | 5.0x0.7mm | |
| Jacket | Material | CMR PVR |
| Thickness | MIN at any point: 0.53mm MAX AVG: 0.57mm |
|
| Diameter | 7.4±0.2mm |
CablePro

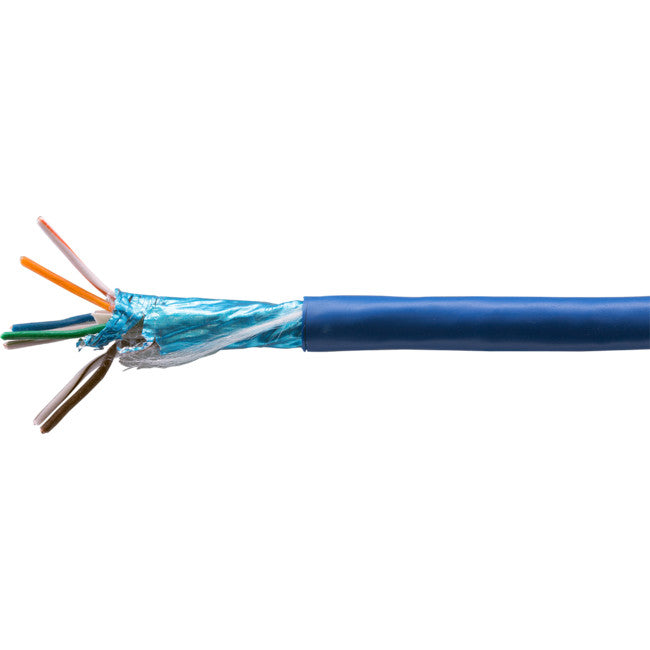

F/UTP CAT6A Solid (305m)
SKU: CM-CAT6A F/UTP
- Regular price
- $435.00
- Sale price
- $435.00
- Regular price
-
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
