• Designed to support high speed data network applications such as 10-Gigabit Ethernet (10GBASE-T)
  • 4 Pairs and a drain wire
  • Minimise alien crosstalk
  • Excellent signal isolation and EMI protection

Features

  • Designed to support high speed data network applications such as 10-Gigabit Ethernet (10GBASE-T)
  • 4 Pairs and a drain wire
  • Minimise alien crosstalk
  • Excellent signal isolation and EMI protection

Specifications

Conductor Material Bare Copper
Size 23AWG
1/0.56/0.58±0.015mm
Insulation Material HD-PE
Thickness MIN at any point: 0.24/ 0.28mm
MAX AVG: 0.26/0.3mm
Diameter 1.08±0.01mm; 1.15±0.01mm
Colour Code Blue/ White-Blue
Orange/White-Green
Green/ White-Green
Brown/ White-Brown
Elongation MIN 300%
Tensile strength MIN 1.682 Kg/mm2
Stranding Myar 0.025x23mm
Al Foil 0.065x23mm
Drain Wire 1/0.40±0.02mm
Cross Slot 5.0x0.7mm
Jacket Material CMR PVR
Thickness MIN at any point: 0.53mm
MAX AVG: 0.57mm
Diameter 7.4±0.2mm
CablePro

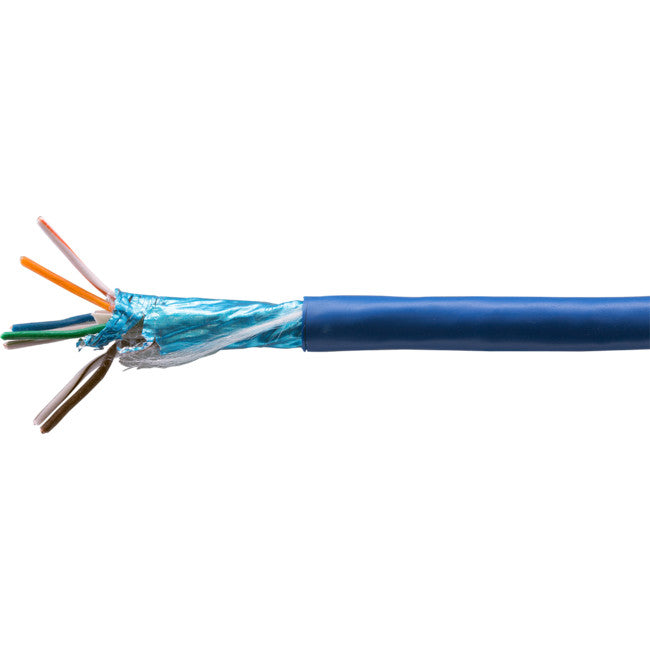

F/UTP CAT6A Solid (Per Metre)

SKU: CM-CAT6A F/UTP-1

$4.50
$4.50
$4.50
Tax included. Shipping calculated at checkout.
