8-port 10/100/1000M Gigabit Ethernet Desktop Switch Supports MAC address self-learning and auto MDI/MDIX.

The TL-SG1008D 8-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamlessand standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have tomove large files across the network almost instantly.

  • Fully Complies with IEEE802.3, 802.3u and 802.3ab standards
  • 8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Supports IEEE802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • Supports MAC address auto-learning and auto-aging

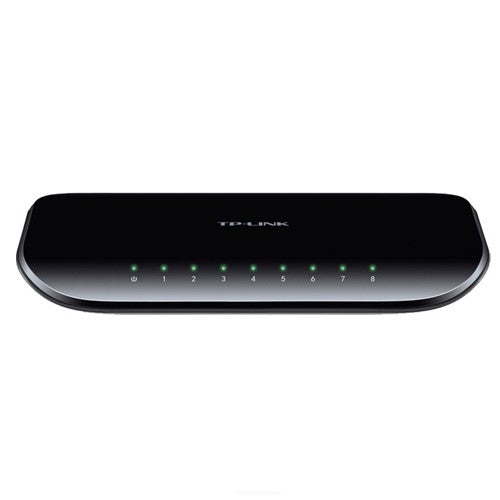

  • LED indicators for monitoring power, link, activity
  • Plastic case, desktop or wall-mounting design
  • External power adapter supply



Standards and Protocols
 IEEE802.3, 802.3u, 802.3ab, 802.3x
 CSMA/CD, TCP/IP
Basic Function
 Wire-speed Performance
 MAC Address Auto-Learningand Auto-aging
 IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
 16Gbps
MAC Address Table
 4k
Forwarding Rate
 10BASE-T: 14880pps/port
 100BASE-TX: 148800pps/port
 1000BASE-T: 1488000pps/port
Transmission Method
 Store-and-Forward
Ports

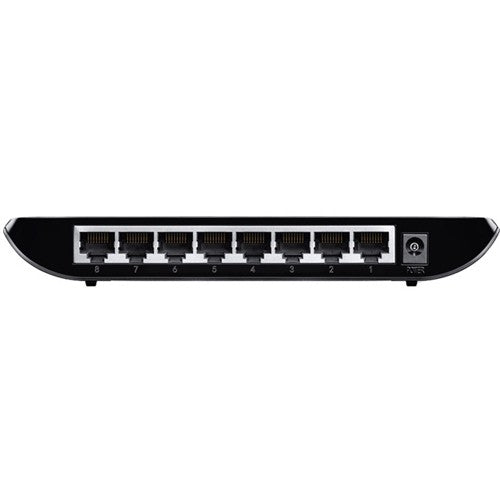

 8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
 10Base-T: UTP category 3,4, 5 cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators
 Power, 10/100M, 1000M
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 7.9*5.5*1.1 in. (200*140*28 mm)
Environment
 Operating Temperature: 0¡æ~40¡æ (32¨H~104¨H)
Storage Temperature: -40¡æ~70¡æ (-40¨H~158¨H)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Power
 External Power Adapter

SPECIFICATIONS:

  • Standards IEEE802.3 10Base-T，IEEE802.3u 100Base-TX
  • Protocol CSMA/CD
  • Topology Star
  • RJ-45 5
  • Uplink None
  • Switching mode Store-and-Forward
  • Filtering and Transmitting speed 10Mbps: 14880pps, 100Mbps: 148800pps
  • Flow control mode IEEE 802.3x full-duplex flow controland back pressure flow contro





CablePro

TP-Link TL-SG1008D 8 Port Unmanaged Switch

SKU: ND-TLSG1008D

$49.22
$49.22
$49.22
Tax included. Shipping calculated at checkout.
